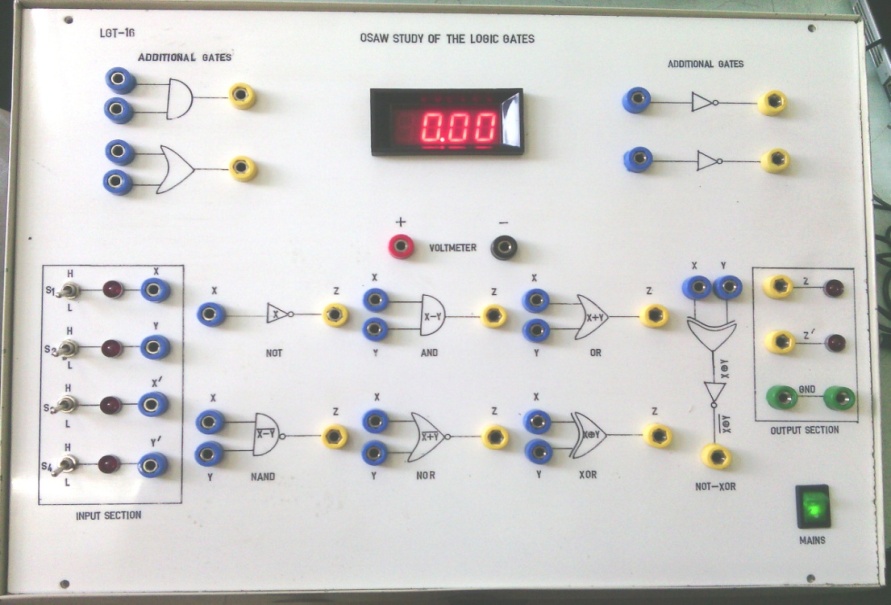

OSAW Study of Logic Gates

Description

Technical Specifications:

(i) Inbuilt Regulated DC +5V  power supply

(ii) ICs 7404(NOT)  ,7408(AND),7432(OR),7486(EX-OR) Gate

(iii) IC 7400(NAND) and 7402(NOR) Gate

(iv) Digital Voltmeter

(v) Four binary inputs(Low & High) toggle Switches with LED indicators

(vi)Eight Output 4mm banana sockets with LED indicators on the front panel

(vii) Connecting Leads

(viii) Instructional Manual
