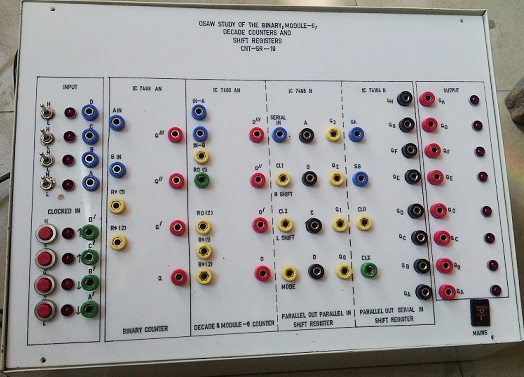

OSAW Binary, MOD-6 ,Decade Counters and Shift Registers Apparatus

Description

Technical Specifications:

(i) Inbuilt Regulated DC +5V  power supply

(ii) ICs 7490 ,7493 ,7495 and 74164

(iii) IC 7405 for Clock Circuit

(iv) Four binary inputs(Low & High) toggle Switches with LED indicators

(v) Two High  and two low Clock signals available on the apparatus front panel

(vi)Eight Output 4mm banana sockets with LED indicators on the front panel

(vii) Connecting Leads

(viii) Instructional Manual
