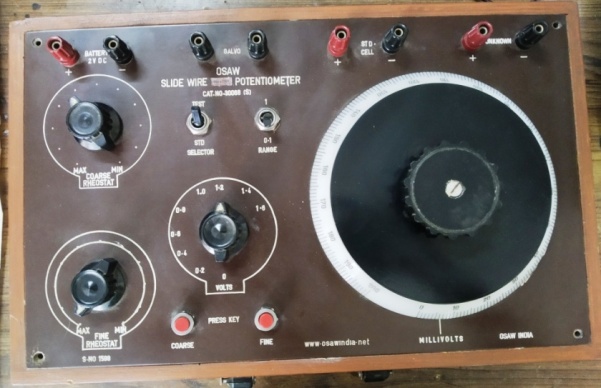

OSAW Slide Wire Precision Potentiometer

A Potentiometer is an instrument for measuring an unknown e.m.f. or Potential Difference by Balancing It,whole or in part,by a known potential difference produced by the flow of a known current in a network of a circuit of known charactersticks.

Description

Technical Specifications:

(i) Range :  0 – 1.8 Volts in two stages

(ii) Range Multiplier  : ×1  —-0 to 1.8 Volts  ;   ×0.1 ——0 to 0.18 Volts

(iii) Smallest direct reading: 0.0002 Volts

(iv) Smallest reading with multiplier: 0.00002 Volts

(v)Resistance  : 11 Ohms/Volt

(vi)Accuracy on the normal range  : 0.0001 Volt

(vii)Inter range accuracy  : 0.01%
