Frequency modulation and Demodulation Apparatus

Description

       Technical Specifications:

(i)  Inbuilt Career frequency generator  using IC XR-2206

(ii) Inbuilt Information(message) Signal generator using IC- 8038 having frequency range 600Hz to 9.0

KHz with amplitude adjusted upto 2.4V

of  Sine,Triangular,Square waveforms..

(iii) Inbuilt Regulated Power Supply ±5V ,±15V DC.

(iv) Message Amplitude,Carrier adjust and Frequency Adjust potentiometers

are given on the front panel of the trainer kit

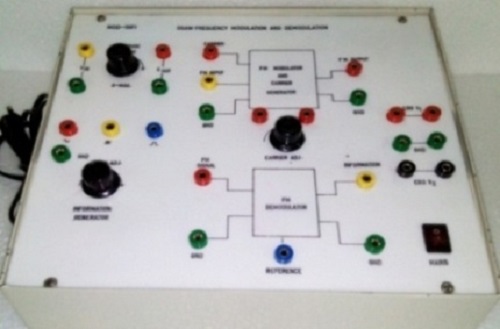

(v) Circuit diagram engraved on a milky white Acrylic sheet

(vi) Patch cords  with 4mm banana plug

(vii) Instructional Manual
